Closed System Continuous Fluidized Bed Dryer In Pharmaceutical Industry

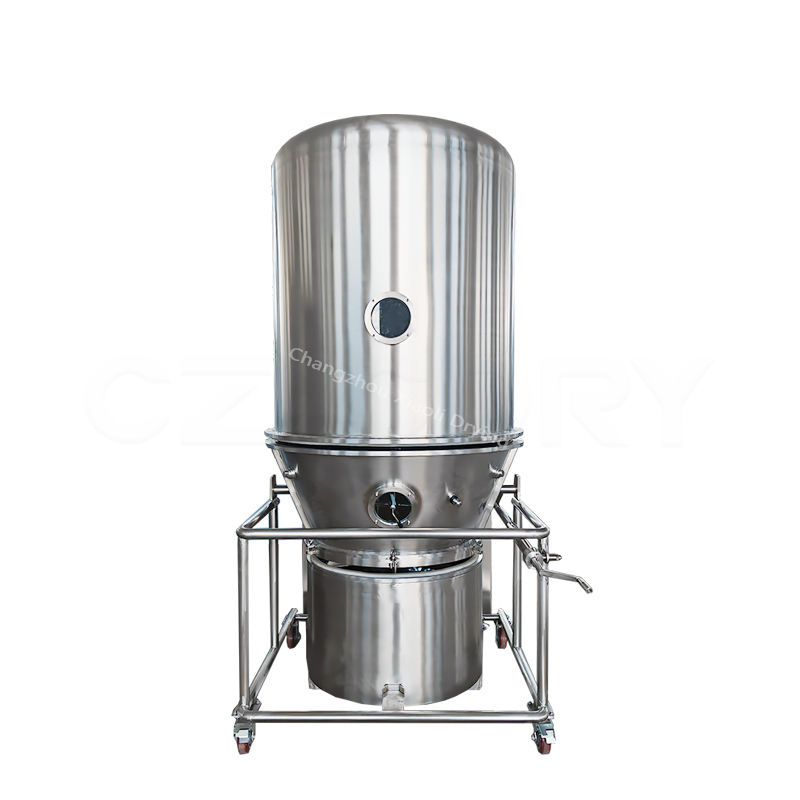

FG Series Vertical Fluidized Bed Dryer — FG-200

The FG Series Vertical Fluidized Bed Dryer is a high-efficiency industrial drying solution designed for continuous dehydration of powder, granule, and crystalline materials. The FG-200 model delivers 200kg/h evaporation capacity, making it ideal for chemical, pharmaceutical, food, and mineral processing applications.

Working Principle

Hot air passes through the material bed at high velocity, suspending solid particles in a fluidized state. This maximizes heat and mass transfer efficiency, achieving rapid, uniform drying with precise temperature control. The vertical design minimizes floor space while maintaining high throughput.

Technical Specifications — FG-200

Key Advantages

• High Thermal Efficiency: Fluidized bed design ensures maximum contact between hot air and material surface for rapid moisture removal.
• Uniform Drying: Continuous particle suspension eliminates hot spots and ensures consistent final moisture content.
• Compact Vertical Design: Small footprint saves valuable factory floor space compared to horizontal belt dryers.
• Wide Temperature Range: Adjustable inlet temperature (80–140°C) accommodates heat-sensitive and robust materials alike.
• Continuous Operation: Designed for 24/7 industrial production with minimal operator intervention.

Applications

• Chemical powders and granules
• Pharmaceutical intermediates
• Food ingredients and additives
• Mineral concentrates and ores
• Plastic resins and pellets
• Fertilizer and agrochemical products

XIAOLI manufactures FG Series dryers with robust stainless steel construction, CE-certified components, and comprehensive after-sales support. Custom configurations available on request.
